BMP signaling in cancer stemness and differentiation


The BMP (Bone morphogenetic protein) signaling pathway plays a central role in metazoan biology, intricately shaping embryonic development, maintaining tissue homeostasis, and influencing disease progression. In the context of cancer, BMP signaling exhibits context-dependent dynamics, spanning from tumor suppression to promotion. Cancer stem cells (CSCs), a modest subset of neoplastic cells with stem-like attributes, exert substantial influence by steering tumor growth, orchestrating therapy resistance, and contributing to relapse. A comprehensive grasp of the intricate interplay between CSCs and their microenvironment is pivotal for effective therapeutic strategies. Among the web of signaling pathways orchestrating cellular dynamics within CSCs, BMP signaling emerges as a vital conductor, overseeing CSC self-renewal, differentiation dynamics, and the intricate symphony within the tumor microenvironment. Moreover, BMP signaling’s influence in cancer extends beyond CSCs, intricately regulating cellular migration, invasion, and metastasis. This multifaceted role underscores the imperative of comprehending BMP signaling’s contributions to cancer, serving as the foundation for crafting precise therapies to navigate multifaceted challenges posed not only by CSCs but also by various dimensions of cancer progression. This article succinctly encapsulates the diverse roles of the BMP signaling pathway across different cancers, spanning glioblastoma multiforme (GBM), diffuse intrinsic pontine glioma (DIPG), colorectal cancer, acute myeloid leukemia (AML), lung cancer, prostate cancer, and osteosarcoma. It underscores the necessity of unraveling underlying mechanisms and molecular interactions. By delving into the intricate tapestry of BMP signaling’s engagement in cancers, researchers pave the way for meticulously tailored therapies, adroitly leveraging its dualistic aspects—whether as a suppressor or promoter—to effectively counter the relentless march of tumor progression.


The BMP (Bone morphogenetic protein) signaling pathway plays a crucial role in various aspects of metazoan biology. From embryonic development to tissue homeostasis and disease progression, the BMP signaling exerts a profound influence on cellular processes and organismal physiology (Massagué 2012). The outcome of BMP signaling response in cancer is highly context-dependent. The regulatory cytokine BMP exerts tumor-suppressive effects that cancer cells must evade to undergo malignant evolution (Cai et al. 2012; Guo and Wang 2009; Owens et al. 2015). Paradoxically, BMP also modulates processes such as cell invasion, stemness, and modification of the microenvironment that cancer cells may exploit to their advantage (Martínez et al. 2017; Wang et al. 2019; Yan et al. 2012).

Cancer stem cells (CSCs), also known as tumor-initiating cells, are a small subpopulation of quiescent, pluripotent, self-renewing neoplastic cells that were first identified in hematologic tumors and later in solid malignancies (Bao et al. 2006; Chen et al. 2012; Shibue and Weinberg 2017). CSCs possess stem-like properties and contribute to tumor initiation, progression, and resistance to therapy. Their role in tumor resistance to chemotherapy and radiation treatment, as well as recurrence, has garnered significant research interest. CSCs are thought to be preserved as a small population through self-renewal, and to generate more differentiated progenies that constitute the bulk of the tumor mass (Kreso and Dick 2014). In addition to providing the driving force for tumor growth and maintenance, CSCs have been shown to be more resistant to existing anticancer therapies, consistent with their role in relapse after therapy. Accordingly, transcriptional signatures of CSCs are predictive of overall patient outcome, supporting their clinical relevance.

The expanding array of aberrant signaling pathways, including BMP, Hippo, Hedgehog, JAK/STAT, Wnt, Notch, PI3K/PTEN, and NF-κB, distinctly regulates the sustenance of cancer stem cells (CSCs) (Clara et al. 2020; Takebe et al. 2015; Yang et al. 2020). While governing normal stem cell equilibrium, these pathways often experience anomalous activation or repression in CSC contexts. The BMP antagonist COCO plays a pivotal role in modulating the reawakening of dormant metastatic breast cancers linked to CSCs in the lung, whereas BMP signaling itself exerts suppressive effects (Gao et al. 2012). YAP/TAZ activation equally emerges as significant, instigating CSC attributes, fueling proliferation, encouraging chemoresistance, and driving metastasis (Zanconato et al. 2016). The JAK/STAT pathway, a pivotal player, drives CSC-mediated metastasis and proliferation in various cancers, including colon cancer (Calon et al. 2012), glioblastoma (Sherry et al. 2009), and breast cancer (Zhou et al. 2007).

Importantly, these pathways form a complex interwoven network of signaling mediators, intricately interacting and fostering a labyrinthine cross-talk. This interconnected web underscores the significance of understanding not only each pathway’s distinct role but also their collaborative dynamics. Together, they intricately shape the landscape of CSC regulation and cancer progression.

Understanding the biology of CSCs and their interactions with the tumor microenvironment is of paramount importance in the pursuit of effective therapies for intractable tumors. The intricate functioning of the BMP signaling has been demonstrated to play a crucial role in regulating CSC self-renewal, differentiation, and the modulation of the tumor microenvironment in various cancer types (Table 1). Moreover, the influence of BMP signaling extends beyond CSCs, intricately regulating cellular migration, invasion, and metastasis across different tumors.

Table 1 The BMP family members and their functions in stemness and differentiation of various cancers

The complex nature of BMP signaling in cancer underscores the need to comprehend its effects within the cellular context and the tumor microenvironment. Given the interplay between the tumor-suppressive and tumor-promoting aspects of BMP signaling, it is imperative to grasp the underlying mechanisms and specific molecular interactions involved. Thus, the objective of this article is to provide a concise overview that highlights the diverse roles of the BMP signaling in various types of cancers.

Basics of BMP signaling pathway

The core BMP signaling components are largely conserved across metazoans (Massagué 2012). The BMP signaling pathway comprises an extensive repertoire of ligands, with more than 20 identified members. These ligands can be classified based on their nucleotide or amino acid similarities. Among the noteworthy ligands within the pathway are BMPs 2, 4, 6, 7, 9, and 15, along with growth differentiation factors (GDFs) 5 and 9, and anti-Müllerian hormone (David and Massagué 2018) (Table 2). Initially derived from demineralized bone matrix, BMPs exhibit remarkable capacity to induce bone formation (Yang et al. 2020). These ligands belong to the transforming growth factor (TGF)-β superfamily (Derynck et al. 2021; Liu et al. 2021).

Table 2 The BMP family members and their receptors

During embryogenesis, BMP signaling participates in key developmental events such as dorsal-ventral patterning, mesoderm and ectoderm specification, as well as organogenesis (Jia et al. 2012). It regulates cell fate determination, proliferation, and differentiation, guiding the formation of diverse tissues and organs throughout the body (Bier and De Robertis 2015; Salazar et al. 2016; Wu et al. 2016). Furthermore, BMP signaling is involved in maintaining tissue homeostasis in adult organisms by influencing cell growth, survival, and regeneration in various organs and tissues, including bone, muscle, skin, and the central nervous system (Agius et al. 2010; Bier and De Robertis 2015; Liu and Niswander 2005; Stevens et al. 2017; Zinski et al. 2018).

Beyond development and tissue maintenance, the BMP signaling has emerged as a crucial player in disease contexts. Dysregulation of BMP signaling has been implicated in several pathological conditions, including cancer, cardiovascular diseases, and developmental disorders (Davis et al. 2016; Martínez et al. 2017; Morrell et al. 2016; Palencia-Desai et al. 2015; Walton et al. 2016; Wang et al. 2019; Yan et al. 2012). Aberrant activation or inhibition of BMP signaling can lead to uncontrolled cell proliferation, abnormal tissue remodeling, and functional impairments in affected tissues (Martínez et al. 2017; Wang et al. 2019; Yan et al. 2012).

The multifaceted nature of BMP signaling is attributed to its intricate network of ligands, receptors, and downstream effectors. BMP ligands bind to specific transmembrane receptors, initiating a cascade of intracellular events that lead to the activation of downstream effectors, including SMAD proteins (Agnew et al. 2021; Gaarenstroom and Hill 2014; Gomez-Puerto et al. 2019). Once activated, these effectors translocate to the nucleus and modulate gene expression, thereby orchestrating the cellular responses associated with BMP signaling (David and Massagué 2018; Massagué et al. 2005) (Fig. 1).

Fig. 1
figure 1

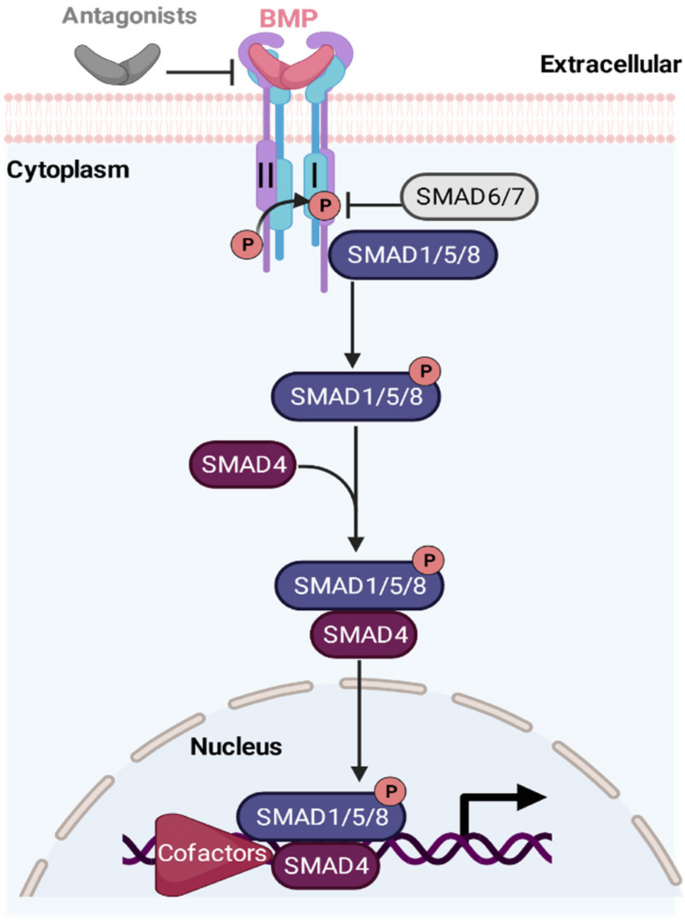

Schematic illustration of BMP signaling pathway. Activation of this pathway occurs when BMP ligand dimers bind to two homologous type II receptors, facilitating the formation of a tetramer with the two type I receptors. The type II receptor kinase, constitutively active, phosphorylates specific serine residues in the type I receptors, leading to their activation. There are four type I BMP receptors: ALK1 (ACVRL1), ALK2 (ACVR1), ALK3 (BMPRIA), and ALK6 (BMPRIB), and three type II BMP receptors: BMP receptor type II (BMPR2), activin type II receptor A (ACVR2A), and activin type II receptor B (ACVR2B). The subsequent steps involve the activation of type I receptors, leading to the phosphorylation of receptor-regulated SMADs (R-SMADs) transcription factors, specifically SMAD1/5/8. In contrast, TGFβ signaling involves SMAD2/3. The R-SMADs form a heteromeric complex with the co-SMAD, SMAD4, and translocate into the nucleus to regulate target gene expression transcriptionally. Created with

Regulation of BMP signaling involves multiple levels of control, encompassing intricate mechanisms that govern the activation, expression, and degradation of key components within the signaling pathway. At the transcriptional level, the expression of BMP ligands, receptors, and downstream effectors is tightly regulated by a variety of transcription factors and co-regulators (Huse et al. 1999; Massagué et al. 2005). Post-translational modifications, such as phosphorylation and ubiquitination, dynamically modulate the activity and stability of BMP receptors, thereby influencing the strength and duration of BMP signaling (Massagué et al. 2005; Shen et al. 2014). Additionally, extracellular regulators, including antagonists and binding proteins, act as molecular rheostats, fine-tuning the availability and localization of BMP ligands (Walsh et al. 2010). Crosstalk with other signaling pathways further adds another layer of complexity, allowing for intricate regulatory networks that shape the precise outcomes of BMP signaling in diverse biological contexts. Overall, the regulation of BMP signaling involves a sophisticated interplay of multiple levels of control, ensuring precise and context-dependent responses to this essential cellular pathway.

BMP signaling in Glioblastoma Multiforme (GBM)

Glioblastoma multiforme (GBM) is a malignant brain tumor in adults, is challenging to treat due to its diverse cellular populations with varying transcriptional profiles, morphology, invasive potential, tumorigenicity, and drug sensitivity (Aldape et al. 2015; Jackson et al. 2019; Khan et al. 2023; Krishna et al. 2023; Miska and Chandel 2023; Vescovi et al. 2006). Glioblastoma stem cells (GSCs), functionally defined by their self-renewal and tumor-propagating ability, exhibit high resistance to radiation and chemotherapy, resulting in poor patient survival (Ranjan et al. 2023; Singh et al. 2004). Neural stem cells (NSCs) share regulatory mechanisms of self-renewal capacity and long-term proliferative potential with GSCs, but undergo terminal differentiation to generate different lineages of mature cells, including astrocytes, oligodendrocytes, and neurons, for tissue homeostasis (Blanpain and Fuchs 2014).

Research findings have demonstrated the indispensable role of TGF-β signaling in upholding the stem cell-like attributes and tumorigenic prowess of GSCs (Ikushima et al. 2009). Perturbation of TGF-β signaling leads to the attenuation of GSCs’ tumorigenic potential, while concurrently triggering the activation of SOX2 and SOX4 through TGF-β signaling, thus perpetuating GSCs’ stemness (Ikushima et al. 2009). Conversely, BMP signaling assumes the role of a tumor suppressor within the context of GBM. Stimulation of BMP signaling coerces GSCs towards adopting an astroglial differentiation fate, consequently impeding the progression of tumor growth (Lee et al. 2008; Piccirillo et al. 2006).

BMP signaling exerts its tumor suppressive function in GBM through the upregulation of SNAI1 (also called SNAIL) and DLX2 (Raja et al. 2017; Savary et al. 2013). SNAI1 induction is correlated with GFAP upregulation and GSC differentiation, indicating SNAI1 is indispensable for BMP signaling-induced differentiation. However, SNAI1 overexpression only partially phenocopies the BMP signaling response in GSC cells, as BMP signaling downregulates Nestin expression, which SNAI1 does not (Savary et al. 2013). DLX2 is highly induced upon BMP signaling, and overexpression of DLX2 significantly decreases GSC cell viability and induces apoptosis. Knockdown of DLX2 blocks the inhibitory effects of BMP signaling on GSCs. Clinically, patients with high expression of DLX2 (BMP signaling targets) survive longer than patients with low expression of DLX2 (Raja et al. 2017).

Despite the tumor suppressive role traditionally associated with BMP signaling in GSCs, human gliomas contain high levels of BMP ligands. A study by Yan et al. revealed that BMP signaling is more active in non-GSCs compared to GSCs. Interestingly, GSCs secrete elevated levels of the BMP antagonist Gremlin1, promoting their stemness by blocking BMP signaling. Moreover, overexpressing Gremlin1 in non-GSCs enhances their tumor-initiating capacity, and it stimulates cell cycle progression in GSCs by inhibiting p21 activity. These findings highlight the complex interplay between BMP signaling, Gremlin1, and distinct cell populations in gliomas (Yan et al. 2014).

In summary, BMP signaling has shown a tumor suppressor role in GBM, particularly in GSCs, making it a potential target for therapeutic intervention. Previous studies have explored methods such as local delivery of BMP4-saturated beads or intracranial administration of BMP4-expressing viruses, which have demonstrated improved survival in preclinical models. However, it is important to carefully balance BMP signaling activation to avoid immune misregulation and potential tumor progression in advanced cancers. Therefore, future research should focus on precise analysis of this signaling pathway in GBM and identify specific downstream targets for inclusion in clinical trials. Overall, augmenting BMP signaling in GSCs holds promise as a therapeutic strategy for GBM treatment.

BMP signaling in diffuse intrinsic pontine glioma (DIPG)

Diffuse intrinsic pontine glioma (DIPG) is a devastating brainstem tumor located in the pons, accounting for 10–15% of all pediatric brain tumors, with a median survival of only 9–12 months (Jones et al. 2017; Wong et al. 1999). Recent large-scale genomic and epigenomic sequencing studies have shed light on driver mutations and their associated genomic and epigenomic landscape in DIPG patients. Nearly 80% DIPG patients carry a characteristic mutation of lysine 27 to methionine (K27M) in histone H3.3 and H3.1 (Bocciardi et al. 2009; Buczkowicz et al. 2014; Fontebasso et al. 2014; Khuong-Quang et al. 2012; Taylor et al. 2014a, b; Wu et al. 2012, 2014).

Approximately 20% of DIPG cases harbor recurrent ACVR1 mutations co-occurred with H3.1K27M, which encode the BMP type I receptor, also known as ALK2 (Bocciardi et al. 2009; Buczkowicz et al. 2014; Fontebasso et al. 2014; Taylor et al. 2014a, b; Wu et al. 2014). These mutations, located in the GS domain (R206H) and the protein kinase domain (R258G, G328V, G328E, and G356D), cause ligand-independent constitutive activation of the BMP signaling pathway, leading to the phosphorylation of SMAD1/5/8 (Atsuta and Takahashi 2016; Fontebasso et al. 2014; Hegarty et al. 2013; Shen et al. 2009; Shore et al. 2006; Stevens et al. 2017). Notably, these mutations also occur in the congenital malformation syndrome fibrodysplasia ossificans progressiva (FOP), where they activate the BMP signaling pathway, resulting in the transformation of soft tissues into bone (Kaplan et al. 2020; Shore et al. 2006; Taylor et al. 2014a, b).

Studies have shown that three of the most common ACVR1 mutants (R206H, G328V, and G328E) alone are not sufficient to induce DIPGs (Fortin et al. 2020; Hoeman et al. 2019). The combination of ACVR1 mutations with H3.1K27M and p53 deletion causes glioma-like lesions with a mesenchymal phenotype, though not enough to induce gliomagenesis (Fortin et al. 2020). Full gliomagenesis requires activation of PDGFRA signaling (Hoeman et al. 2019). Moreover, expression of Acvr1G328V in murine oligodendroglial cells causes neurological anomalies. Acvr1G328V induces ligand-independent BMP signaling activation and upregulates PDGFRA to block oligodendrocyte differentiation. Thus, Acvr1G328V cooperates with Hist1h3bK27M and Pik3caH1047R to induce high-grade diffuse gliomas (Fortin et al. 2020). These results suggest that ACVR1 mutations, which cause BMP signaling activation, drive tumorigenesis of DIPG and arrest this glioma at progenitor cell states.

The elevated BMP signaling activity implicated in tumorigenesis of ACVR1 mutant and H3.1K27M subtype DIPG suggests that targeting ACVR1 may hold promise as a therapeutic strategy. ACVR1-targeting drugs, including LDN-214,117, LDN-193,189, and LDN212854, have shown potential in preclinical studies for treating this specific subtype of DIPG (Carvalho et al. 2019; Hoeman et al. 2019). They selectively inhibit DIPG cell growth, reduce phospho-SMAD1/5/8 levels, block ID1 expression, and demonstrate anti-tumor efficacy both in vitro and in vivo (Carvalho et al. 2019). E6201, a previously defined covalent inhibitor of MEK1/2, has been identified to associate with ACVR1, and inhibits BMP ligand-stimulated phosphorylation of SMAD1 (Fortin et al. 2020). E6201 demonstrated anti-tumor efficacy in DIPG cells and Acvr1G328V DIPG mouse models. In summary, drugs targeting the BMP signaling pathway, especially ACVR1, may provide clinical options for DIPG patients with ACVR1 mutations.

Thus far, the ACVR1 mutation subtype of DIPG has received a significant amount of research attention, despite the fact that only 20% of DIPG patients carry ACVR1 mutations. Analysis of the active enhancer landscapes in H3.1K27M and H3.3K27M DIPG indicates that the differentially accessible enhancer elements of H3.3K27M DIPG are enriched in negative regulation of the BMP signaling compared with H3.1K27M DIPG (Nagaraja et al. 2019). Recent investigations have highlighted the diminished activity of BMP signaling in H3.3K27M ACVR1 WT subtype DIPG. Notably, BMP4 ligands have been found to exert robust tumor-suppressive effects on this particular subtype of DIPG. These effects are achieved by facilitating the transition of DIPG tumor cells from a prolonged stem-cell-like state to a state of differentiation, primarily through epigenetic regulation of CXXC5 (Sun et al. 2022). Moreover, the tumor suppressive effects of BMP signaling on ACVR1 wild-type (WT) and H3.3K27M subtype DIPG are supported by clinical evidence showing that patients with high expression of CXXC5 or ACVR1 tend to have a better prognosis, while low expression of CHRDL1 is associated with improved outcomes (Sun et al. 2022).

Thus, these findings unveil four potential therapeutic opportunities for H3.3K27M ACVR1 WT subtype DIPG by enhancing BMP signaling: (1) targeting CHRDL1, an antagonist of the BMP pathway, could be achieved by inhibiting its activity, potentially utilizing a neutralizing antibody against CHRDL1; (2) inhibiting FPKBP12, a negative regulator of BMP receptors, through degradation or blocking strategies such as PRO-TAC technology or FK50663, could activate BMP signaling and impede tumor growth; (3) augmenting CXXC5 activity, a positive regulator of BMP signaling, could be pursued to suppress tumor growth; (4) HDACis drugs, which have exhibited anti-tumor efficacy in DIPG and can positively regulate BMP signaling, holds promise for improved therapeutic outcomes. These approaches provide encouraging avenues for the development of novel therapies targeting this aggressive cancer.

In sum, given the contrasting roles of BMP signaling in the two subtypes of DIPG, it is essential to explore distinct therapeutic strategies tailored to each subtype.

BMP signaling in colorectal cancer

The intestinal mucosa harbors self-renewing stem cells in the crypt base and differentiated cells in the villus, which are tightly regulated by gradients of BMP and WNT signaling pathways (Beumer et al. 2022; Kraiczy et al. 2023; McCarthy et al. 2020). Stem cell maintenance and division are facilitated by high levels of WNT signaling and low levels of BMP signaling in the crypt base, while differentiation and apoptosis of daughter cells in the top villus are driven by low levels of WNT signaling and high levels of BMP signaling (Qi et al. 2017; van den Brink and Offerhaus 2007). The coordination between WNT and BMP signaling is necessary and sufficient to maintain intestinal stem cells self-renewal (Barker et al. 2007; Li et al. 2018; Wang and Chen 2018), while abnormal activation of WNT signaling and loss of BMP signaling would contribute to the development of colorectal carcinogenesis (Zhang and Que 2020).

The BMP signaling pathway is imperative in maintaining intestinal epithelial homeostasis and preventing the development of colorectal cancer (CRC). BMP signaling promotes intestinal differentiation while inhibiting stem cell activation. However, germline mutations in BMPR1A and SMAD4 are responsible for familial juvenile polyposis syndrome, which carries a high lifetime risk of CRC (Kodach et al. 2011). Genome-wide association studies have identified mutations in other members of the BMP signaling pathway that are associated with an increased risk of CRC, including BMP2, BMP4, GREM1, and SMAD7 (Broderick et al. 2007; Houlston et al. 2008), which can disrupt normal BMP signaling in the intestinal mucosa. The loss of BMP signaling leads to the formation of ectopic crypts, juvenile polyps, and eventually tumors (Haramis 2004).

Studies on transgenic mice have revealed that BMP signaling inhibits crypt fossa formation and polyp growth by suppressing WNT signaling (Haramis 2004; He et al. 2004) and controls crypt division by inhibiting stem cell self-renewal and replication (Haramis 2004). BMP signaling is typically intact in normal colonic epithelial cells and various types of adenomas but frequently inactivated in cancer cells (Kodach et al. 2008a, b). BMP4 treatment can increase PTEN levels, inhibit the PI3K/AKT pathway, antagonize the proliferative effects of WNT, and induce the differentiation of colorectal cancer stem cells (Lombardo et al. 2011). Thus, BMP signaling is considered a vital suppressor of intestinal tumorigenesis.

The secretion of BMP antagonists, such as Gremlin1, Gremlin2, and Noggin, is also tightly regulated in the intestine (Stzepourginski et al. 2017). These antagonists, which are derived exclusively from subcrypt myofibroblasts, act locally within the basal stem cell of the crypt to inhibit BMP signaling and maintain stemness (Kosinski et al. 2007). A duplication of approximately 40 kb upstream of the GREM1 gene leads to hereditary mixed polyposis syndrome (HMPS), an autosomal dominant disorder that predisposes untreated patients to develop colorectal cancer at a median age of 47 years (Jaeger et al. 2012). Aberrant epithelial expression of GREM1 disrupts the intestinal morphogenetic gradient and alters daughter cell fate, initiating colonic tumorigenesis from cells outside of the crypt base stem cell niche (Davis et al. 2015). Inhibition of BMP signaling in epithelial cells by transgenic overexpression of Noggin leads to the formation of ectopic crypts and polyps in the mouse intestine, mimicking the intestinal histopathology of juvenile polyposis (Batts et al. 2006; Haramis 2004).

Transcription factors also play a pivotal role in BMP signaling regulation. BMP signaling exerts a growth-suppressive effect in HT-29 through upregulation of RUNX3, which binds with T-cell factor 4 (TCF4) to form a complex with β-catenin. This complex negatively regulates WNT signaling by inhibiting the transcriptional activity of β-catenin/TCF4 on promoters of WNT target genes like the oncogene c-MYC. However, TGF-β has no effect on RUNX3 expression (Lee et al. 2010). Interestingly, elevated expression of BMP4 is specific to colorectal cancer, while other BMPs are not elevated in colorectal cancer cells (Yokoyama et al. 2017). Additionally, studies have found that BMP2 is silenced by promoter hypermethylation in a subgroup of CRCs. Statin treatment can inhibit DNA methyltransferase activity, demethylate the promoters of BMP2, and promote a shift from a stem-like state to a more differentiated state in CRCs (Kodach et al. 2011).

The potential of BMP signaling in the treatment of CRC has been explored, and it has been found that BMP signaling enhances the cytotoxic effects of chemotherapy, suggesting that combining BMP4 administration with current standard chemotherapy could provide clinical benefits for CRC patients (Lombardo et al. 2011). Furthermore, BMP2 has been identified as a differentiating and radiosentizing agent for colorectal cancer stem cells, suggesting that restoring the BMP signaling pathway may offer novel therapeutic approaches for colorectal cancer (Mahmoudi et al. 2023). In light of the systemic effects of BMP signaling on patients, future clinical strategies should focus on targeting specific members of BMP pathway to maximize benefits.

BMP signaling in acute Myeloid Leukemia (AML)

Acute myeloid leukemia (AML) is a highly aggressive hematological malignancy that is characterized by the uncontrolled proliferation of hematopoietic stem/progenitor cell (HSPCs) and blockage of myeloid differentiation (De Kouchkovsky and Abdul-Hay 2016; Döhner et al. 2015). The self-renewing leukemia stem cells (LSCs), which share properties with normal hematopoietic stem cells (HSCs) producing normal blood cells, initiate and sustain AML cells (Gal et al. 2006). The WNT and BMP signaling pathways have been implicated in the aberrant proliferation of AML cells during disease progression (Gruber et al. 2012; Raymond et al. 2014; Voeltzel et al. 2018). Studies have revealed that activation of BMP signaling maintains progenitors in an undifferentiated state, resulting in therapeutic resistance (Gruber et al. 2012; Raymond et al. 2014; Voeltzel et al. 2018), while others have reported that BMP signaling inhibits growth and induces differentiation of myeloid progenitors and AML cells (Imai et al. 2001; Wang et al. 2006).

Increased BMP signaling has been shown to induce differentiation of CD34+ cells into megakaryocytes (Jeanpierre et al. 2008). In contrast, fusion-positive acute megakaryoblastic leukemias (AMKLs) with the CBFA2T3-GLIS2 fusion exhibit altered expression of BMP, SHH, and WNT pathway genes, particularly BMP2 and BMP4 (Gruber et al. 2012). BMP2/4 act in an autocrine or paracrine manner to promote growth and induce a megakaryocytic lineage phenotype in AMKL blasts and hematopoietic progenitors (Crispino and Le Beau 2012; Gruber et al. 2012). Another study has identified intrinsic and extrinsic upregulation of the BMP signaling in AML patients at diagnosis. They found BMP4 controls the expression of the survival factor ΔNp73 through its binding to BMPR1A, which results in the direct induction of NANOG expression and an increase of stem-like features in AML cells (Voeltzel et al. 2018).

Additionally, study reported that the secreted stem cell growth factor R-spondin 2 (RSPO2) inhibits BMP signaling to promote self-renewal in AML cells, which acts as a BMP signaling antagonist (Sun et al. 2021). Interestingly, the truncated isoform, SMAD5-beta, was found to have higher expression levels in the undifferentiated CD34+ HSCs/LSCs than in the terminally differentiated leukemia, thereby suggesting its implication in stem cell homeostasis. Furthermore, the lack of physical interactions between SMAD5-beta and SMAD4 may represent a novel mechanism to protect pluripotent stem cells and malignant cells from the growth inhibitory and differentiation signals of BMPs (Jiang et al. 2000).

In summary, the role of the BMP signaling in AML is context-dependent, particularly in LSCs. Activation of BMP signaling is necessary for maintaining stemness and promoting AML lineage phenotype production in progenitor cells. Conversely, inhibiting BMP signaling can protect against AML differentiation in specific cellular contexts. These findings underscore the pleiotropic nature of BMP signaling in AML and emphasize the importance of developing precise and personalized therapies for AML in the future.

BMP signaling in lung cancer

Lung cancer is the leading cause of cancer mortality and accounts for 30% of all deaths from cancer (Jemal et al. 2010; Siegel et al. 2013). Despite advancements in medical care, the prognosis for lung cancer remains poor, with 85% of patients succumbing to the disease. BMP signaling, which is normally absent in adult lung tissue (Sountoulidis et al. 2012), becomes reactivated in lung injury as well as non-small cell lung carcinomas (NSCLC) and small cell carcinomas (Langenfeld et al. 2005). NSCLC exhibits significant overexpression of BMP2 compared to normal lung tissue and benign tumors, and depletion of BMP2 or its receptor BMPR2 has been shown to reduce cell migration and invasiveness (Wu et al. 2022).

Recent studies have shown that the BMP signaling plays a crucial role in promoting lung cancer cell growth and survival (Langenfeld et al. 2013). Downregulation of type I BMP receptors with siRNA or small molecule inhibitors (DMH1, DMH2) in lung cancer cells caused growth inhibition and cell death, while the forced expression of ID3 attenuated growth suppression and cell death caused by BMP receptor inhibitors. These findings suggest that BMP signaling is a potential therapeutic target for lung cancer treatment (Augeri et al. 2016). Furthermore, combining inhibition of BMP signaling with mitochondrial targeting agents induces AIF (apoptosis-inducing factor) caspase-independent cell death by hyperactivating AMPK, indicating the potential use of this combination as a novel therapeutic strategy for lung cancer treatment (Mondal et al. 2022). Moreover, RUNX2 could recruit histone H3K9-specific methyltransferase Suv39h1 to BMP3B (GDF10) proximal promoter and then suppress the BMP3B expression, which is regarded as a tumor growth inhibitor and a gene silenced in lung cancers (Dai et al. 2004; Tandon et al. 2012).

Taken together, these finding demonstrate that BMP signaling plays an essential role in lung cancer cell growth and survival. BMP signaling inhibitors could present a potential therapeutic target for lung cancer treatment, alone or in combination with other agents. However, further research is needed to investigate the clinical utility of targeting BMP signaling for lung cancer treatment.

BMP signaling in prostate cancer

Prostate cancer is a significant cause of male cancer-related mortality (Siegel et al. 2016). The interplay between TGF-β and BMP signaling pathways within prostate cancer is intricate, with distinct roles (Lu et al. 2017). Genetic deletions of Tgfbr2 and Bmpr2 in a Pten-null mouse model reveal that TGFβ restrains cancer progression, while BMP signaling drives advancement (Lu et al. 2017). BMP signaling interacts with pathways like WNT and PI3K/AKT, fostering cancer progression and therapy resistance (Chen et al. 2016; Lee et al. 2014a; Murillo-Garzón and Kypta 2017). BMP ligands are key subjects in research on prostate cancer stemness, migration, invasion, growth, and metastasis.

Within the intricate landscape of prostate cancer, the architects of disorder manifest as basal and ductal stem cells, wielding the potential to spark tumorigenesis and invariably contributing to the unsettling specter of tumor recurrence (Choi et al. 2012; Goldstein et al. 2010). Intriguingly, emerging reports cast a spotlight on BMP signaling as a vigilant guardian of stem/progenitor cell preservation nestled within the basal cell enclave. Noteworthy is the fact that taming the tempestuous BMP5 signaling alone showcases the capacity to impede the otherwise relentless march of cancer progression within prostate basal cells, offering a promising ray of hope (Tremblay et al. 2020). Deeper intricacies are unveiled as BMP6 assumes a central role, conducting a sophisticated symphony of migration and invasion within the domain of prostate cancer cells. Amplifying its significance, BMP6 intricately coordinates the heightened expression of MMP and ID1, propelling prostate cancer cells towards an elevated prowess in migration and invasion (Darby et al. 2008).

However, not all BMP ligands assume tumor-promoting roles in prostate cancer; BMP7, in particular, stands as an exception. Initial reports highlighted BMP7’s ability to curtail tumor growth by upregulating CDKN1A in prostate cancers (Miyazaki et al. 2004). BMP7 exercises control over epithelial homeostasis within the human prostate, safeguarding the epithelial phenotype and impeding bone metastases of prostate cancer in vivo (Buijs et al. 2007). Furthermore, BMP7 induces reversible senescence and growth arrest of cancer stem cells (CSCs) both in vitro and in vivo, achieved by upregulating NDRG1 through the p38 pathway in prostate cancer (Kobayashi et al. 2011).

BMP signaling also assumes crucial significance in the context of bone metastases in prostate cancer, a factor responsible for 80% of patient deaths (Ibrahim et al. 2010). In vitro investigations have illuminated the cooperative impact of BMP4 and SHH on fostering the survival of prostate cancer cells alongside the differentiation of bone stromal cells, potentially culminating in the osteoblastic metastasis characteristic of prostate cancer (Nishimori et al. 2012). Moreover, findings from in vivo studies have underscored the involvement of BMP4 in osteogenesis within a xenograft model of prostate cancer bone metastasis. Notably, inhibition of BMP receptors by LDN193189 has been shown to impede osteoblast differentiation and restrain tumor growth (Lee et al. 2011).

In summary, BMP signaling significantly impacts prostate cancer malignancy, with BMP ligands being key factors. Certain BMP ligands maintain cancer stemness, enhance migration and invasion, and drive metastasis. Noteworthy is BMP7’s unique role, reducing prostate tumor growth. These studies illuminate intricate BMP coordination with other pathways, fueling cancer progression and suggesting BMP modulation as a promising therapeutic strategy for curbing prostate tumor advancement.

BMP signaling in osteosarcoma and chondrosarcoma

BMPs, originally recognized for their bone-forming prowess, play pivotal roles in bone and cartilage development throughout life (Salazar et al. 2016). Notably, disrupted BMP signaling frequently underpins human bone and cartilage disorders, particularly osteosarcomas and chondrosarcoma. These two malignancies, accounting for around 30% of primary bone sarcomas, often exhibit altered BMP presence (Evola et al. 2017). In osteosarcomas, BMPs tend to be linked with less differentiated mesenchymal cells, contributing to an unfavorable prognosis (Nguyen et al. 2014). Malignant dedifferentiated chondrosarcomas also display BMP expression and undifferentiated characteristics. Clinical investigations reveal that osteosarcomas with active BMP signaling exhibit resistance to chemotherapy, heightened metastasis tendencies, and significantly reduced five-year survival rates (Yoshikawa et al. 1988). However, BMP signaling’s role in osteosarcomas is diverse. Patients with BMP-signaling-negative tumors have reported lower overall survival (Mohseny et al. 2012).

Recent studies have delved into the potential impact of BMP signaling on osteosarcoma. An earlier investigation documented the inhibitory prowess of BMP2 in curbing sarcomagenesis within “cancer stem cells” of osteosarcoma. This inquiry pinpointed osteosarcoma stem cells derived from the OS99-1 cell line, displaying elevated ALDH activity, a trait profoundly dampened by BMP2 treatment both in controlled laboratory conditions and in live subjects (Wang et al. 2011). Conversely, an alternate study highlighted the limitations of BMP2/9 overexpression in prompting osteogenic differentiation. In osteosarcomas afflicted with differentiation anomalies, BMP exerted pro-mitogenic effects, revealing a complex interplay between BMP signaling and osteosarcoma progression (Luo et al. 2008). Intriguingly, the exposure of osteosarcoma cells to diverse extracellular matrix (ECM) components, in the presence or absence of BMP2, led to an unexpected revelation. BMP2 emerged as a driver of osteosarcoma cell migration, achieved through its modulation of fibronectin-integrin-β1 signaling pathways (Sotobori et al. 2006).

In summary, BMPs have been extensively studied as osteoinductive molecules, exhibiting documented expression patterns in both benign and malignant bone tumors. However, the effects of BMPs on osteosarcoma and chondrosarcoma biology are diverse and multifaceted. In the context of osteosarcoma, BMP signaling demonstrates a dichotomy of effects. It exerts anti-tumor influences on osteosarcoma cancer stem cells (CSCs), orchestrating transitions from a stemness state to a differentiation state. Simultaneously, BMP signaling can paradoxically stimulate osteosarcoma cell migration and invasion, particularly when certain osteosarcoma cells develop resistance to BMP-induced osteogenic differentiation. This intricate interplay is facilitated through crosstalk with fibronectin-integrin-β1 signaling pathways.

These discoveries provide a foundational framework for evaluating the clinical relevance of BMP signaling in predicting the outcomes of osteosarcoma and chondrosarcoma. Furthermore, they underscore the potential of modulating BMP signaling as a therapeutic avenue for curbing osteosarcomagenesis, inhibiting growth, and thwarting invasive tendencies in these malignancies.

BMP signaling in cancer metastasis

Tumor metastasis stands as the primary culprit behind cancer-related fatalities. Grasping the intricate molecular mechanisms that underlie this menacing process holds the key to reigning in this formidable ailment. Within the metastatic cascade, numerous signaling pathways choreograph the intricate cellular ballet, encompassing stalwarts such as TGFβ (Massagué 2008), BMP (Ren et al. 2020), PDGF (Nissen et al. 2007), and the JAK/STAT pathways (Yadav et al. 2011).

In the realm of cancer, the TGFβ pathway’s duality has been long acknowledged. Its role wavers between anti-tumor sentinel and pro-metastasis instigator, its inclination hinging upon cellular phenotype, genetic aberrations, and an array of allied factors (Massagué 2008). Similarly, mirroring TGFβ’s enigmatic behavior, BMP engagement with tumor cells showcases a dual face. While initially stifling cellular proliferation, BMP stimulation paradoxically emboldens the machinery of cell migration and invasion, as observed in compelling research (Ketolainen et al. 2010).

BMP signaling frequently intersects with other signaling pathways, sometimes acting as a facilitator of tumor metastasis. Recent investigations have unveiled intriguing insights. Notably, in the context of highly invasive breast cancers, TGFβ signaling has been found to counteract BMP-induced SMAD1/5/8 activation. This interplay leads to a substantial reduction in tumor self-seeding, as well as diminished liver and bone metastasis (Ren et al. 2020). In a related context, the interplay between BMP and SHH pathways forms a cooperative and intricate cycle that fuels the bone metastasis of prostate cancer, as observed in prior studies (Nishimori et al. 2012).In addition, the interwoven connection of BMP and NF-κB signaling pathways emerges as a pivotal driver of both oncogenesis and metastasis in esophageal squamous cell carcinoma, a revelation elucidated through research endeavors (Lau et al. 2017).

Moreover, the activation of BMP signaling within the neighboring tumor microenvironment has been found to potentiate the metastatic dissemination of tumors. Specifically, the stimulation of fibroblasts by BMP can exert diverse effects. In the context of prostate tumors, BMP stimulation of fibroblasts has been demonstrated to foster angiogenesis (Yang et al. 2008). Similarly, when mammary fibroblasts are exposed to BMP stimulation, it leads to an augmentation in tumor cell invasion. This is coupled with an escalation in the secretion of inflammatory cytokines and the remodeling of the extracellular matrix (Owens et al. 2013).

Recent investigations have illuminated the potential of systemic BMP signaling inhibition as a means to halt tumor progression and metastasis, encompassing both the tumor itself and its microenvironment. A noteworthy illustration comes from the use of DMH1, a BMP antagonist, which has exhibited promising outcomes. Treatment with DMH1 has shown the capability to curtail lung metastasis in breast cancer. Additionally, in vivo results displayed a reduction in tumor proliferation and an increase in apoptotic processes, highlighting the potential therapeutic significance of modulating BMP signaling (Owens et al. 2015).

Collectively, these investigations substantiate the multifaceted role of BMP signaling in the intricate landscape of cancer evolution and advancement. BMP signaling exhibits a dichotomy, capable of curbing tumor stemness while concurrently fostering the orchestration of organ-specific tumor metastasis (Fig. 2). The intricate interplay between BMP signaling and other prominent pathways serves as a facilitator, steering the course of tumor metastatic spread and overall progression across various cancer types. Emerging as a promising avenue for therapeutic intervention, the restraint of BMP signaling within both the tumor and its encompassing microenvironment emerges as a prospective approach in combatting the specter of future cancer metastasis.

Fig. 2
figure 2

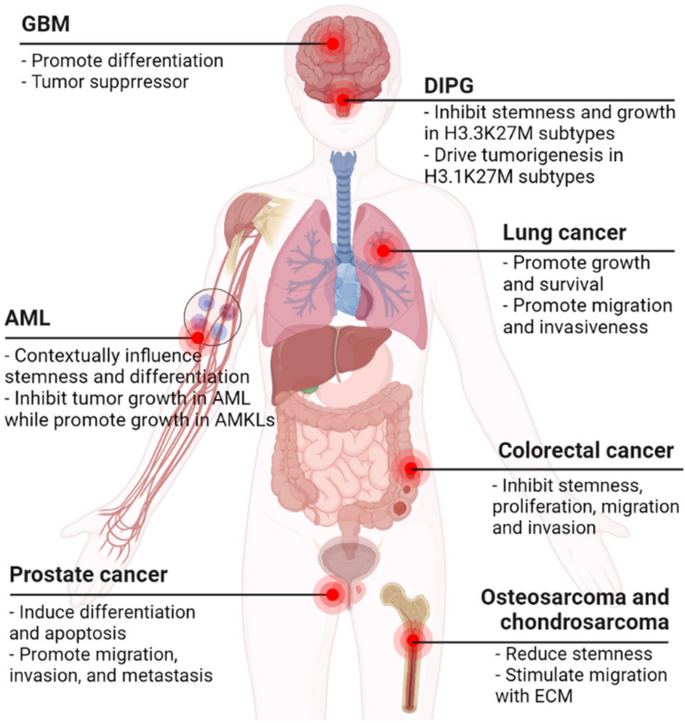

The role of BMP signaling in various human cancers. BMP signaling exhibits context-dependent pleiotropic effects across diverse cancers. In certain cancer types (e.g., lung cancer), BMP signaling can drive tumorigenesis, whereas in others (e.g., GBM), it exerts inhibitory influence on tumor progression. Notably, within distinct tumor subtypes of DIPG and AML, BMP signaling assumes a dual role. Furthermore, the functions of BMP signaling in prostate cancer and osteosarcoma are contingent upon the cellular context, introducing variability in its impact. Created with

Conclusions and perspectives

This review provides an overview of the findings from numerous studies that have investigated the function of BMP signaling in cancer stemness and differentiation. Similar to the TGFβ signaling pathway, the role of the BMP pathway in tumorigenesis is complex and varies depending on the specific cellular context, acting as either a tumor suppressor or a tumor promoter.

Understanding the precise mechanisms and the intricate crosstalk between the BMP and TGFβ signaling pathways is of great importance to unravel the complexities of tumorigenesis. While the BMP signaling has been implicated in various aspects of cancer development, including tumor growth, metastasis, and stemness (Table 1 and Fig. 2), there are still many unanswered questions. One such question pertains to the potential overlapping and distinct roles of the BMP and TGFβ pathways in different types of cancers. Further investigation is needed to elucidate the interplay and competitive effects between these two signaling pathways within tumor cells.

Importantly, the activity of BMP signaling is tightly regulated by a plethora of factors, and disrupting this delicate balance can alter the characteristics of normal cells and lead to their transformation into tumor cells (Table 1). Understanding the key factors involved in this regulatory process is crucial for comprehending the development and progression of cancer. In this regard, secreted antagonists play a significant role in the regulatory network of BMP signaling. The tumor microenvironment is enriched with various secreted factors, including BMP signaling antagonists. The concentration and activity of BMP ligands and antagonists may depend on intricate cell-to-cell communication, and it has been suggested that cancer stem cells may secrete BMP signaling antagonists as a means to inhibit the BMP pathway within the tumor microenvironment. Hence, investigating the roles of BMP ligands and antagonists within the tumor microenvironment may provide valuable insights into the regulatory networks that influence cancer development and progression.

BMP ligands introduce further layers of intricacy to the already complex regulatory landscape within different tumors. It’s noteworthy that distinct BMP ligands might execute analogous functions within a given tumor. Paradoxically, a singular BMP ligand could even yield disparate functions when situated in diverse tumor types. As a result, the influence of BMP signaling takes center stage within specific tumor contexts. Delving into the operational mechanisms of these ligands becomes imperative, as it holds the potential to elucidate the exact contribution of the BMP pathway within these specific tumor types.

Given the diverse roles of BMP signaling in cancer, there is considerable potential for the development of novel therapeutic approaches targeting these pathways. In cases where BMP signaling acts as a tumor suppressor, delivering exogenous BMP ligands to tumors using various methods, such as through the use of vaccinia viruses, may hold clinical promise and offer potential benefits to patients. Additionally, targeting BMP signaling pathway antagonists or negative regulators, such as NOG (noggin) and SMAD6, using small molecule inhibitors could effectively promote BMP signaling activity and potentially inhibit tumor growth.

Conversely, in situations where BMP signaling act as tumor promoters, interventions at different levels could be considered. Direct delivery of inhibitors, such as antisense oligonucleotides, specifically targeting BMP ligand production within the tumor, could potentially offer a means to prolong patient survival. Furthermore, inhibiting ligand-receptor interactions using antibodies against BMP ligands or BMP receptors, as well as employing small molecule inhibitors that target BMP receptor kinases, like LDN-193,189, could provide alternative and potentially more effective therapeutic approaches for blocking BMP signaling in tumors.

Lastly, since BMP ligands and antagonists are secreted proteins, the measurement of their concentrations in a patient’s blood or specific tissues may have diagnostic value and could aid in assessing the level of tumorigenesis. Monitoring the levels of these signaling molecules may offer valuable insights into disease progression and guide treatment decisions.

In conclusion, the comprehensive understanding of BMP signaling in cancer is a complex and evolving field. The intricate interplay between BMP, TGFβ and other signaling pathways, the balance of BMP ligands and antagonists in the tumor microenvironment, and the potential for targeted therapeutic interventions make this an area of great interest for future research and the development of personalized cancer therapies.

Availability of data and materials

Not applicable.



Bone morphogenetic protein


Cancer stem cell


Glioblastoma multiforme


Glioma stem cells


Neural stem cells


Fibrodysplasia ossificans progressiva


Diffuse intrinsic pontine glioma


Colorectal cancer


Acute myeloid leukemia


Leukemia stem cells


Hematopoietic stem cells


Acute megakaryoblastic leukemias


Non-small cell lung cell


Download references


We thank Dan Wang, Hongxing Yu and Runxuan Wang for critical reading of the manuscript. We apologize that we cannot cite all published work in this field due to the limited length of the manuscript.


This work was supported by National Key R&D Program of China (2022YFA1302704).

Author information

Authors and Affiliations



W. Z., K. Y. and Q. X. wrote the manuscript. All authors have read and approved the final manuscript.

Corresponding author

Correspondence to Qiaoran Xi.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit The Creative Commons Public Domain Dedication waiver ( applies to the data made available in this article, unless otherwise stated in a credit line to the data.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Zhou, W., Yan, K. & Xi, Q. BMP signaling in cancer stemness and differentiation. Cell Regen 12, 37 (2023).
