- Research article
- Open Access
Coordination of EZH2 and SOX2 specifies human neural fate decision
Cell Regeneration volume 10, Article number: 30 (2021)
Polycomb repressive complexes (PRCs) are essential in mouse gastrulation and specify neural ectoderm in human embryonic stem cells (hESCs), but the underlying molecular basis remains unclear. Here in this study, by employing an array of different approaches, such as gene knock-out, RNA-seq, ChIP-seq, et al., we uncover that EZH2, an important PRC factor, specifies the normal neural fate decision through repressing the competing meso/endoderm program. EZH2−/− hESCs show an aberrant re-activation of meso/endoderm genes during neural induction. At the molecular level, EZH2 represses meso/endoderm genes while SOX2 activates the neural genes to coordinately specify the normal neural fate. Moreover, EZH2 also supports the proliferation of human neural progenitor cells (NPCs) through repressing the aberrant expression of meso/endoderm program during culture. Together, our findings uncover the coordination of epigenetic regulators such as EZH2 and lineage factors like SOX2 in normal neural fate decision.
During development, the coordination of epigenetic regulators and linage specific transcription factors (TFs) plays critical roles in normal lineage fate decisions (Hirabayashi and Gotoh 2010; Yao et al. 2016; Zhang et al. 2019). For instance, polycomb repressive complexes (PRCs) that modify chromatins are essential in lineage commitment during early embryonic development (Di Croce and Helin 2013; Gifford et al. 2013; Nichols and Smith 2012; Surface et al. 2010). Polycomb group proteins (PcG proteins) form two PRC complexes, PRC1 and PRC2. PRC2 contains core components, EZH1, EZH2, EED and SUZ12, and catalyzes histone H3 lysine 27 tri-methylation (H3K27me3) while PRC1 contains RING1A and RING1B, the E3 ubiquitin ligases, and mediates mono-ubiquitination of histone H2A at lysine 119 (H2AK119ub1) (Schuettengruber et al. 2017; Simon and Kingston 2009). Ablations of PRC2 core components (EZH2, EED and SUZ12) leads to severe defect in mouse gastrulation, thus demonstrating their essential role in early development (Morin-Kensicki et al. 2001; O'Carroll et al. 2001; Pasini et al. 2004). On the other hand, PRC2 and H3K27me3 are also important to maintain the pluripotency of embryonic stem cells (ESCs) through occupying and repressing critical lineage and developmental genes (Bernstein et al. 2006; Boyer et al. 2006; Margueron and Reinberg 2011; Pan et al. 2007). Interestingly, loss of function of PRC2 results in different phenotypes between mouse and human ESCs. Mouse ESCs (mESCs) deleted of PRC2 core components such as Suz12, Eed or Ezh2 maintain the undifferentiated state while human ESCs (hESCs) without these components exit pluripotency and undergo spontaneous differentiation (Chamberlain et al. 2008; Pasini et al. 2007; Saha et al. 2013; Shan et al. 2017). hESCs with PRC2 deletions specifically differentiate toward meso/endoderm fate rather than the expected all three germ layer fate, because that the three germ layer genes might be de-repressed upon their deletion (Collinson et al. 2016; Shan et al. 2017). Interestingly, EZH2−/− hESCs fail to generate the whole neural ectoderm in teratoma formation (Shan et al. 2017). These findings suggest that PRC2 specifically regulates the neural ectoderm lineage decision at early developmental stage (Collinson et al. 2016; O'Carroll et al. 2001; Obier et al. 2015; Pasini et al. 2007; Shan et al. 2017).
Indeed, PRCs and H3K27me3 have been shown to regulate neurogenesis at different development stages and levels. PRC2 was shown to regulate the transcriptional program in adult mouse striatal neurons (von Schimmelmann et al. 2016). On the other hand, JMJD3, the demethylase of H3K27me3 is required for neuronogenesis of adult brain (Park et al. 2014). We also reported that human NPCs with JMJD3 deficiency failed to become neurons due to the accumulation of repressive H3K27me3 (Shan et al. 2020). These findings demonstrate that PRCs and its mediated H3K27me3 play essential roles to regulate the neural fate decision. Theoretically, lineage fate decision is highly coordinated at all levels to ensure the generation of normal stem/progenitor cells and then the downstream related subtype cells (Hirabayashi and Gotoh 2010; Yao et al. 2016; Zhang et al. 2019). However, how precisely that PRCs and H3K27me3 specify the neural fate at early development remains unclear. In this study, we show that EZH2 and SOX2 coordinately specify normal neural fate decision in hESCs, during which EZH2 mainly act to repress the competing meso/endoderm program while SOX2 activates neural gene program. Our findings provide insights in understanding the mechanism that the coordination of epigenetic factors and lineage specific transcription factors to determine normal lineage fate.
EZH2 −/− hESCs fail to generate subtype neuron/glia cells
We have previously shown that EZH2−/− hESCs failed to generate neural ectoderm in teratoma formation. To investigate the underlying molecular mechanism, we analyzed neural differentiation of EZH2-null hESCs under defined conditions in more detail (Fig. 1a). Upon dual SMADs inhibition (2i) to trigger neural differentiation, EZH2−/− hESCs exited pluripotency but displayed a different morphology compared with wild type (WT) cells (Chambers et al. 2009) (Fig. 1b). In contrast to the morphology of WT neural cells, many flatten cells could be seen in EZH2−/− hESCs differentiation (Fig. 1b). However, these EZH2−/− hESCs derived cells triggered by neural condition did express neural fate related markers, such as PAX6, NESTIN, and SOX2 (Fig. 1c-d), albeit in reduced level compared with WT cells (Fig. 1d). We then performed downstream neuron/glia differentiation on WT and EZH2−/− hESCs derived cells. While we could detect significant number of neuron and glia cells in neural differentiation of WT cells, but failed to detect these cells in EZH2−/− hESCs derived cells based on morphology and immunostaining on specific markers, such as neuronal marker MAP2 and astrocyte marker GFAP (Fig. 1e-f). Together, these data demonstrate that EZH2−/− hESCs derived neural cells are incompetent to generate downstream neural cells even though they expressed early NPC genes such as SOX2, PAX6 and NESTIN, etc.

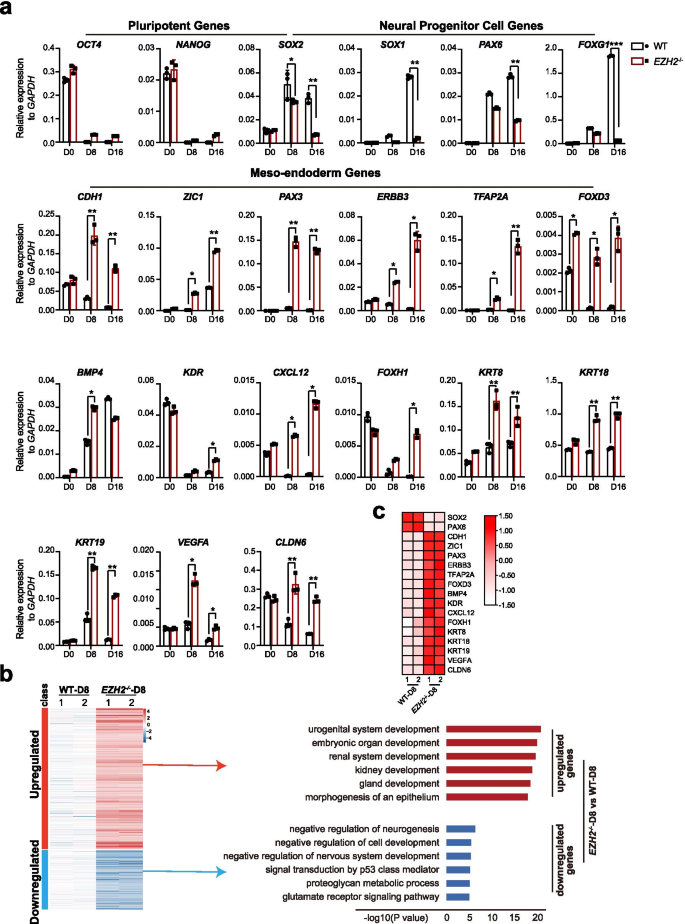

EZH2 −/− hESCs aberrantly express meso/endoderm genes during neural induction
We then analyzed gene expression profile in time course during neural differentiation of EZH2−/− hESCs. Pluripotent markers such as OCT4 and NANOG were successfully downregulated in both WT and EZH2−/− hESCs, which is consistent to their differentiated morphology (Fig. 2a). Many NPC markers, such as SOX2, PAX6 and FOXG1 were induced in EZH2−/− hESCs at early stage but become suppressed at later stage of neural differentiation compared with WT cells (Fig. 2a). Strikingly, a panel of meso-endoderm genes, such as CDH1, ZIC1, PAX3, ERBB3, TFAP2A, et al., were significantly de-repressed in EZH2−/− cells compared to WT cells during neural differentiation (Fig. 2a). These data indicate that loss of EZH2 leads an aberrant activation of meso-endoderm gene program during neural fate commitment. We also performed whole genome transcriptome analysis between EZH2−/− and WT cell line at day 8 of differentiation (hereafter denoted EZH2−/−-D8 and WT-D8) (Fig. 2b). Consistent to the suppressive function of EZH2, EZH2 deficiency leads to much more the up-regulated genes than the down-regulated ones in EZH2−/−-D8 cells compared with WT-D8 (Fig. 2b, right panel). These upregulated genes are mainly enriched in functions related to meso-endoderm development, such as kidney and organ development, while the small number of downregulated genes are related to neural functions (Fig. 2b, right panel, Fig. 2c). Together, these data demonstrate that the meso-endoderm genes are de-repressed and aberrantly re-activated in neural differentiation in the absence of EZH2.

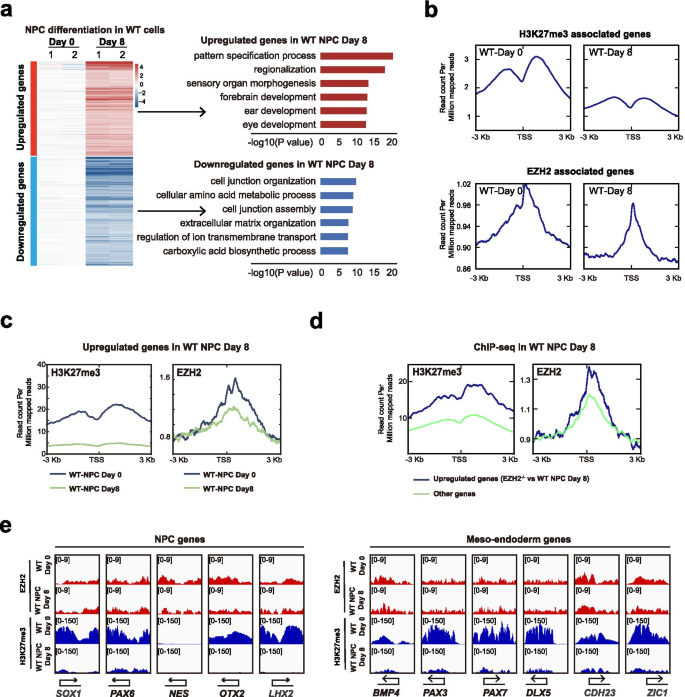

EZH2 suppresses meso-endoderm genes in normal neural fate decision
To further investigate the role of EZH2 in normal neural differentiation, we generated transcriptome data and ChIP-seq data of EZH2 and H3K27me3 in hESCs at day 0 and day 8 differentiation (WT-Day 0 or WT-Day 8, respectively) (Fig. 3a-b). As expected, the upregulated genes in WT-Day 8 cells were highly related to neuroectoderm functions (Fig. 3a). The downregulated genes were enriched in cell junction and extracellular matrix organization functions (Fig. 3a). For those up-regulated genes with neural functions, EZH2 binding as well as H3K27me3 binding were significantly reduced in WT-Day 8 cells compared with WT-Day 0 cells (Fig. 3b-c), demonstrating the neural genes lose EZH2 and H3K27me3 enrichment in neural differentiation. We also examined the EZH2 and H3K27me3 on those aberrantly expressed meso-endoderm genes due to loss of function of EHZ2 (up-regulated genes in EZH2−/−-Day 8 VS WT-Day 8) (Fig. 3d). These EZH2 deficiency induced genes showed higher EZH2 binding and H3K27me3 compared with the randomly picked genes in WT-Day 8 (Fig. 3d). Consistently, many known critical meso-endoderm regulators such as BMP4, PAX3, PAX7, DLX5, etc. showed high enrichment of H3K27me3 and EZH2 in WT-Day8 cells while the essential neural genes lost H3K27me3 and EZH2 (Fig. 3e). Together, these data demonstrate that EZH2 acts to suppress meso/endoderm genes while release neural genes to specify neural fate in hESC differentiation.
Coordination of EZH2 and SOX2 in neural lineage fate decision
SOX2 is the critical dual-role transcription factor that maintains pluripotency of ESCs and also regulates neural lineages (Zhou et al. 2016). To examine the coordination of EZH2 and SOX2 in neural fate decision, we performed ChIP-seq of SOX2 in neural differentiation of hESCs at Day 0 and Day 8. Generally, SOX2 intensity was much higher in Day 8 differentiated neural cells compared with Day 0 undifferentiated hESCs (Fig. 4a). Interestingly, about one third EZH2-bound promoters in undifferentiated WT hESCs were co-bound by SOX2 (Fig. 4b-c). These EZH2 /SOX2 co-bound genes were highly enriched in neural functions (Fig. 4c-d), indicating that the sub-set of neural genes suppressed by EZH2 are pre-bound by SOX2 in undifferentiated hESCs. We then tracked dynamic change of EZH2 and SOX2 binding on these genes in Day 8 neural differentiated cells (Fig. 4e). A portion of EZH2/SOX2 co-bound genes lost EZH2 but kept SOX2 in Day 8 neural cells and these genes were exclusively related to neural lineage functions (Fig. 4e upper panel). Another panel of genes lost SOX2 but kept EZH2 and they were related to A/P patterning as well as other non-neural fate functions such as bone development (Fig. 4e, middle panel). The third group genes kept both SOX2 and EZH2 and were related to functions of later stage neural development such as neuron maturation, retina development, etc. (Fig. 4e, lower panel). At the expression level, genes that lost SOX2 continue to be repressed in Day 8 differentiated cells, while those genes that lost EZH2 were de-repressed (Fig. 4f, left and middle panel). EZH2 /SOX2 keeping genes showed no big difference in expression between Day 8 differentiated cells and Day 0 undifferentiated hESCs (Fig. 4f, left and right panel). Upon EZH2 deletion, EHZ2 bound genes were up-regulated in Day 8 differentiated cells while the SOX2 bound genes showed no big changes (Fig. 4g). In summary, these data reveal that in neural fate decision, SOX2 pre-binds critical neural fate genes that are directly suppressed by EZH2 in undifferentiated hESCs (Fig. 4h). These genes lose EZH2 and are up-regulated by SOX2 in neural fate cells (Fig. 4h). At the meanwhile, the competing meso/endoderm genes were solely bound and directly repressed by EZH2 to ensure the fidelity of neural fate (Fig. 4h). To confirm this model, we performed immuno-staining analysis for expression profiles of EZH2/SOX2 protein and found EZH2 and SOX2 were co-expressed in same cell population during neural differentiation of wild type hESCs at day 0 and day 8 (Supplementary Figure 1a). Furthermore, we performed knock-down of SOX2 in hESC neural differentiation (Supplementary Figure 1b). As expected, hESCs with SOX2 knock-down exited pluripotency normally during 2i induced neural differentiation, but the expression of neural linage genes was severely impacted (Supplementary Figure 1c-g). While, the meso/endoderm genes were not activated or changed upon SOX2 knock-down in neural differentiation (Supplementary Figure 1g). Together, these data demonstrate that SOX2 and EZH2 play different roles but act coordinately to specify neural fate decision in hESCs.
EZH2 promotes the proliferation of human neural progenitor cells (NPCs) in vitro
Since EZH2 plays critical roles in specifying neural fate through suppressing the competing meso-endoderm program, we then sought to examine whether EZH2 promote generation and proliferation of NPCs in vitro. We infected lentivirus expressing EZH2 into wild-type (WT) hESCs and performed neural differentiation (Fig. 5a-d). Consistently, the expressions of selected meso-endoderm genes were significantly suppressed in EZH2-expressing hESCs in neural differentiation (Fig. 5e). Furthermore, the generated NPCs with EZH2-expressing showed much better proliferation and lower apoptosis at higher passages (Fig. 5f-g). Interestingly, we found that the expressions of NPC genes were better while selected meso-endoderm genes were significantly repressed in EZH2-overexpressed NPCs at higher passages (Passage 4, P4) (Fig. 5h). Furthermore, hNPCs with overexpression of EZH2 could normally generate the subtype neuron/glia cells similar to wild type hNPCs during NPC random differentiation (Fig. 5i-j). This data indicate that forced expression of EZH2 do not affect differentiation of NPCs. Together, these data demonstrate that EZH2 promotes proliferation of human NPCs in vitro.
How precisely the epigenetic regulators and lineage TFs coordinate the cell fate decision remains elusive. PRC2 complex (its core component EZH2, EZH1, SUZ12 and EED) plays critical roles in early development as well as maintaining pluripotent stem cells (PSCs) (Gifford et al. 2013; Schuettengruber et al. 2017; Surface et al. 2010). The working model is that PRCs and their mediated H3K27me3 occupy and repress the developmental genes for three germ-layers in PSCs. These PRC-bound genes are considered to be in a repressive but poised state under the undifferentiated state of PSCs. However, human ESCs with PRC2 deficiency exit pluripotency and undergo spontaneous differentiation toward the meso-endoderm fate rather than the random three germ layer fate assumedly due to de-repression of these genes (Shan et al. 2017). Strikingly, EZH2−/− hESCs failed to generate the whole ectoderm in teratoma formation, indicating EZH2 plays specific roles in ectoderm fate decision (Collinson et al. 2016; Shan et al. 2017). We then investigate the molecular basis underlying neural differentiation using EZH2−/− hESCs as a model. At the molecular level, EZH2 mainly repress the competing meso-endoderm genes during neural fate decision while the neural lineage factor, SOX2 activates those neural related genes in this process. Therefore, the epigenetic regulator, EZH2 and lineage TF, SOX2 act in different aspect but coordinately specify the neural fate fidelity (Fig. 4e). Our findings provide a model and insight to understand the exact role of epigenetic regulators in specifying the lineage fate decision.
This study demonstrates coordination of EZH2, an important PRC factor, and SOX2, an important neural transcript factor, in neural lineage fate decision. Human embryonic stem cells (hESCs) with EZH2 deletion fail to generate neural progenitor cells (NPCs) and neural subtype neuron/glia cells because an aberrant re-activation of meso/endoderm genes during neural induction. Moreover, EZH2 represses meso/endoderm genes while SOX2 activates the neural genes in normal neural fate decision. Finally, the study shows that EZH2 and SOX2 coordinately specify the normal neural fate.
We used mTeSR1 (STEMCELL Technologies) to maintain the human embryonic stem cell line H1 (Wi Cell) and its knock-out cell line (H1-EZH2−/−) on Matrigel (Corning)-coated plates (Shan et al. 2017). These hES cells were passaged every 3 days, and the culture medium was changed with fresh culture medium every day. These cells were maintained at 5% CO2 and 37 °C.
Neural progenitor cell (NPC) differentiation
Human ES cells with 100% cell confluence were seeded onto Matrigel-coated 6-well plates in mTeSR1 medium. After 1 day, the culture medium was changed with N2B27 medium (50% DMEM/F12 (Gibco), 50% neurobasal (Gibco), 0.5 × N2 (Gibco), 0.5 × B27 (Gibco), 1% Glutamax (Gibco), 1% NEAA (Gibco), 5 μg mL−1 insulin (Sigma), and 1 μg mL−1 heparin (Sigma)) with 5 μM SB431542 (Selleck) and 5 μM dorsomorphin (DM, Selleck). The medium was changed every day. After 8 days, the cells were passaged at a 1:2 ratio on new Matrigel-coated 6-well plates in N2B27 medium with 10 μM Y-27632 (Selleck). The medium was changed with fresh N2B27 medium every 2 days. For 12 to 16 days, the cells were cultured with N2B27 medium plus 20 ng mL−1 bFGF (PeproTech). After 16 days, the neural progenitor cells were picked. Then, these clones were seeded onto Matrigel-coated 6-well plates in N2B27 medium plus 10 μM Y-27632 and changed to N2B27 the next day. After 7 days, canonical neural rosettes were appeared. We picked these neural rosettes and named NPC passage 2 (NPC-P2). For proliferation assay, we digested NPC-P2 into single cells with Accutase (Sigma), then 1 × 106 NPC cells were cultured in each low adhesion plate with N2B27 medium plus 10 μM Y-27632 and changed N2B27 medium next day. The medium was changed every 2 days. Every 7 days, these NPCs were passaged and counted. The following passaging NPCs were named NPC passage 3 (NPC-P3), passage 4 (NPC-P4) and so on. These NPCs were cultured in N2B27 medium, and the fresh medium was changed every 2 days.
Random differentiation of human neural progenitor cells
Human neural progenitor cells at passage two (NPC-P2) were digested into single cells for random differentiation. 2 × 104 neural progenitor cells were seeded onto 24-well plates coated with Matrigel in N2B27 medium plus 10 μM Y-27632. 1 day later, the culture medium was changed with N2B27 medium plus 20 ng mL−1 GDNF (PeproTech), 20 ng mL−1 BDNF (PeproTech), and 1 mM cAMP (Sigma). The medium was changed with the fresh medium every 2 days. After 28 days of differentiation, the canonical morphology of neuron and astrocyte was appeared, and the differentiated cells were examined by immuno-staining and qRT-PCR assay.
Quantitative real-time PCR (qRT-PCR)
We performed the extraction of total RNA from cells with TRIzol (Invitrogen). And then, 2 μg total RNA was used for reverse-transcription with a HiScript III RT SuperMix for qPCR Kit (Vazyme). Then, we performed qRT-PCR assay with ChamQ SYBR qPCR Master Mix (Vazyme) and a CFX96 machine (Bio-Rad). We used GAPDH to normalize the qRT-PCR results for our samples. All data were analyzed with three replicates. All primer sequences are listed in Supplementary Table 1.
Western blot analysis
To detect PAX6, SOX2 and EZH2-FLAG, the cells was lysed by RIPA buffer (Beyotime) on ice for 10 min. Whole-cell extracts were loaded to 12% SDS-PAGE with gel quickly preparation kit (Beyotime). Then, these samples from the SDS-PAGE gels were transferred to PVDF membranes (Millipore). Then, these PVDF membranes were incubated with the corresponding primary antibodies overnight at 4 °C. After washing three times with TBST for 10 min each time, these PVDF membranes were incubated with the corresponding HRP-conjugated secondary antibodies at room temperature (RT) for 2 h. After washing three times in TBST for 10 min each time, these PVDF membranes containing samples were detected by ECL (Millipore) and captured with a SmartChemi image analysis system (Sage Creation). The detailed information of the antibodies is listed in Supplementary Table 2.
Flow cytometry analysis
The cells from these samples were digested into single cells with Accutase (Sigma). Then, these single cells were fixed in fixation buffer (BD Biosciences). After washing with PBS, these cells were permeabilized in perm/wash buffer (BD Biosciences) at 4 °C for 10 min. After washing, these cells were divided into two equal parts, one was incubated with the corresponding primary antibodies at 37 °C for 30 min, and another one was incubated with corresponding isotype control antibodies at 37 °C for 30 min. After washing, these sample cells were incubated with corresponding secondary antibodies at 37 °C for 30 min. After washing in PBS twice, these sample cells were resuspended in PBS. And then these cells were analyzed with a CytoFLEX S flow cytometer (Beckman). The detailed information of the antibodies is listed in Supplementary Table 2.
Cells were seeded onto Matrigel-coated 24-well plates for immuno-staining assay. Then, the cells were fixed in 4% paraformaldehyde (PFA) for 20 min at room temperature (RT). After washing three times with PBS for 5 min each time, the cells were permeabilized and blocked with 0.3% Triton X-100 (Sigma), 10% goat serum in PBS. Meanwhile, the cells were incubated with corresponding primary antibodies overnight at 4 °C. After washing three times with PBS for 5 min each time, the cells were incubated with corresponding secondary antibodies for 1 h. Then, DAPI (Sigma) were added into incubation solution at room temperature for 5 min. After washing three times with PBS for 5 min each time, we placed the slide upside down on the microslide with fluorescence mounting medium (Dako). Images were captured with an LSM 800 microscope (Zeiss). The detailed information of the antibodies is listed in Supplementary Table 2.
EdU assay and apoptosis analyses
We used a Click-iT™ EdU Alexa Fluor® 647 flow cytometry assay kit (Invitrogen) according to the manufacturer’s recommendations for EdU assay. 1 × 106 wild-type NPCs and NPCs with overexpression of EZH2 were seeded onto Matrigel-coated 6-well plates in N2B27 medium with 10 μM EdU or without EdU for ~ 14 h. Then, we digested these cells into single cells, and the single cells were fixed in fixation buffer. After washing in PBS, the cells were permeabilized in perm/wash buffer at 4 °C for 10 min. After washing in PBS, the cells were incubated in PBS plus CuSO4, the Alexa Fluor® 647 azide, and Click-iT® EdU buffer additive at 37 °C for 30 min. After washing in PBS, the samples were analyzed with a CytoFLEX S flow cytometer.
We used an Annexin V-FITC/PI cell apoptosis detection kit (Vazyme) according to the manufacturer’s recommendations for Apoptosis analysis. We digested wild-type NPCs and NPCs with overexpression of EZH2 into single cells. And 1 × 105 cells were incubated with binding buffer, Annexin V-FITC, and PI together at room temperature (RT) for 15 min. Then, these sample cells were analyzed with a CytoFLEX S flow cytometer.
RNA-seq and heatmap analyses
We used TRIzol (MRC) to lyse wild-type and EZH2−/− cells at Day 0 and Day 8 in NPC differentiation and extract total RNA according to the manufacturer’s recommendations. Then, we established sequencing libraries with a VAHTS mRNA-seq V3 Library Prep Kit for Illumina (Vazyme) according to the manufacturer’s recommendations. The sequencing libraries from these samples were run on a NextSeq system with a NextSeq 500 Mid Output kit (Illumina).
Then, we analyzed all RNA-seq data. Briefly, RNA-seq reads were filtered by Trimmomatic (v0.35) and then aligned to the human reference genome (hg38) using Hisat2 (v2.0.4) with default parameters. The sorted BAM files were used as inputs for HTSeq-count (v0.6) to obtain read counts per gene. R package ChIPpeakAnno (v3.16.1) was used to identify nearby genes from the peaks obtained from MACS and SICER. Gene Ontology (GO) analysis was performed using clusterProfiler (v3.18). EDASeq (v2.24) was used to perform normalization of RNA-seq read counts and differential expression analysis was undertaken using the DESeq2 (v1.30).
We performed ChIP-seq for analyzing whole-genome binding and enrichment of EZH2, H3K27me3 and SOX2. Briefly, we used 1% formaldehyde (Sigma) in PBS to crosslink 1 × 107 cells from each sample with rotation at room temperature for 10 min. Then, we added 0.125 M glycine to stop these crosslinking reactions with rotation at room temperature for 5 min. After washing in cold PBS twice, the cells were lysed with 1% SDS lysis buffer plus 1 mM PMSF and protease inhibitor cocktail, and the cells were sonicated to obtain 200–500 bp chromatin fragments. Then, ChIP dilution buffer was used to dilute these sonicated samples. The sonicated fragments from these samples were co-incubated with magnetic beads (Dynabeads protein A and G (1:1)) (Invitrogen) and 5 μg corresponding specific antibody (anti-H3K27me3 antibody (Diagenode, C15410069), anti-EZH2 antibody (CST, 5246) or anti-SOX2 antibody (R&D, AF2018), respectively) with rotation overnight at 4 °C. These magnetic beads/antibody-bound samples were washed with rotation at 4 °C for 5 min with the following series buffers: low-salt wash buffer (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris–HCl (pH 8.0), 150 mM NaCl), high-salt wash buffer(0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris–HCl (pH 8.0), 500 mM NaCl), LiCl wash buffer (0.25 M LiCl, 1% IGEPAL-CA630 (Sigma), 1% deoxycholic acid (sodium salt), 1 mM EDTA, 10 mM Tris–HCl (pH 8.0)), and TE buffer (10 mM Tris–HCl (pH 8.0), 1 mM EDTA). Then, these magnetic beads/antibody-bound samples were eluted with Elution Buffer (1% SDS, 0.1 M NaHCO3). These eluted samples were reverse-crosslinked with 5 M NaCl overnight at 65 °C, and added RNase A (20 mg/mL) at 37 °C for 1–2 h, 1 M Tris–HCl (PH 6.5), 0.5 M EDTA, Proteinase K at 45 °C for 2 h. Then, we purified the ChIPed DNA from these samples for ChIP-Seq. We used a Qubit fluorometer (Invitrogen) to measure ChIPed DNA and corresponding input DNA, and generated DNA libraries with these DNA using a VAHTS Universal DNA Library Prep Kit for Illumina (Vazyme), respectively. We measured these DNA libraries with a Qubit fluorometer, and sequenced these DNA libraries on a NextSeq 500 platform.
ChIP-seq reads were were filtered by Trimmomatic (v0.35) and then aligned to the human reference genome (hg38) using Bowtie2 (v2.2.5) (Langmead and Salzberg 2012) with default parameters. PCR duplicate reads were removed using SAMtools (v1.3.1) (with the parameters "-F 1804 -f 2 -q 30") and Picard tools MarkDuplicates (v1.90). Peak calling was performed using the MACS2 (v2.1.0) callpeak module (with parameters "-p 0.01 –nomodel –extsize 150 -B –SPMR –keep-dup all") for transcription factor binding, and then only peaks with -log10(qvalue) more than 0.5 (EZH2) or 1 (SOX2) were keeped. Enriched regions for histone modification were called at the FDR level of 1% using SICER (v1.1) (Zang et al. 2009) with window sizes set to 200 bp, and gap sizes set to 600 bp (H3K27me3). Tracks of signal were computed using MACS2 bdgcmp module with parameter "-m FE". BigWig files were visualized using computeMatrix, plotHeatmap and plotProfile module in DeepTools (v2.4.2) (Ramirez et al. 2014). Gene Ontology (GO) analysis was performed using clusterProfiler (v3.18).
In general, we present the results as the mean ± SD (standard deviation), and the results are calculated by Microsoft Excel and GraphPad Prism from at least three biological repeats. Unpaired two-tailed Student’s t-tests was used to determine the significance level between samples. Differences with a P value < 0.05 were considered significant differences. No samples were excluded for any analysis.
Availability of data and materials
All data supporting the findings of this study are available within the article and its supplementary information files or from the corresponding upon reasonable request.
Bernstein BE, Mikkelsen TS, Xie X, Kamal M, Huebert DJ, Cuff J, Fry B, Meissner A, Wernig M, Plath K, et al. A bivalent chromatin structure marks key developmental genes in embryonic stem cells. Cell. 2006;125:315–26.
Boyer LA, Plath K, Zeitlinger J, Brambrink T, Medeiros LA, Lee TI, Levine SS, Wernig M, Tajonar A, Ray MK, et al. Polycomb complexes repress developmental regulators in murine embryonic stem cells. Nature. 2006;441:349–53.
Chamberlain SJ, Yee D, Magnuson T. Polycomb repressive complex 2 is dispensable for maintenance of embryonic stem cell pluripotency. Stem Cells. 2008;26:1496–505.
Chambers SM, Fasano CA, Papapetrou EP, Tomishima M, Sadelain M, Studer L. Highly efficient neural conversion of human ES and iPS cells by dual inhibition of SMAD signaling. Nat Biotechnol. 2009;27:275–80.
Collinson A, Collier AJ, Morgan NP, Sienerth AR, Chandra T, Andrews S, Rugg-Gunn PJ. Deletion of the Polycomb-Group Protein EZH2 leads to compromised self-renewal and differentiation defects in human embryonic stem cells. Cell Rep. 2016;17:2700–14.
Di Croce L, Helin K. Transcriptional regulation by Polycomb group proteins. Nat Struct Mol Biol. 2013;20:1147–55.
Gifford CA, Ziller MJ, Gu H, Trapnell C, Donaghey J, Tsankov A, Shalek AK, Kelley DR, Shishkin AA, Issner R, et al. Transcriptional and epigenetic dynamics during specification of human embryonic stem cells. Cell. 2013;153:1149–63.
Hirabayashi Y, Gotoh Y. Epigenetic control of neural precursor cell fate during development. Nat Rev Neurosci. 2010;11:377–88.
Langmead B, Salzberg SL. Fast gapped-read alignment with Bowtie 2. Nat Methods. 2012;9:357–9.
Margueron R, Reinberg D. The Polycomb complex PRC2 and its mark in life. Nature. 2011;469:343–9.
Morin-Kensicki EM, Faust C, LaMantia C, Magnuson T. Cell and tissue requirements for the gene eed during mouse gastrulation and organogenesis. Genesis. 2001;31:142–6.
Nichols J, Smith A. Pluripotency in the embryo and in culture. Cold Spring Harb Perspect Biol. 2012;4:a008128.
Obier N, Lin Q, Cauchy P, Hornich V, Zenke M, Becker M, Muller AM. Polycomb protein EED is required for silencing of pluripotency genes upon ESC differentiation. Stem Cell Rev. 2015;11:50–61.
O’Carroll D, Erhardt S, Pagani M, Barton SC, Surani MA, Jenuwein T. The polycomb-group gene Ezh2 is required for early mouse development. Mol Cell Biol. 2001;21:4330–6.
Pan G, Tian S, Nie J, Yang C, Ruotti V, Wei H, Jonsdottir GA, Stewart R, Thomson JA. Whole-genome analysis of histone H3 lysine 4 and lysine 27 methylation in human embryonic stem cells. Cell Stem Cell. 2007;1:299–312.
Park DH, Hong SJ, Salinas RD, Liu SJ, Sun SW, Sgualdino J, Testa G, Matzuk MM, Iwamori N, Lim DA. Activation of neuronal gene expression by the JMJD3 demethylase is required for postnatal and adult brain neurogenesis. Cell Rep. 2014;8:1290–9.
Pasini D, Bracken AP, Jensen MR, Denchi EL, Helin K. Suz12 is essential for mouse development and for EZH2 histone methyltransferase activity. EMBO J. 2004;23:4061–71.
Pasini D, Bracken AP, Hansen JB, Capillo M, Helin K. The polycomb group protein Suz12 is required for embryonic stem cell differentiation. Mol Cell Biol. 2007;27:3769–79.
Ramirez F, Dundar F, Diehl S, Gruning BA, Manke T. deepTools: a flexible platform for exploring deep-sequencing data. Nucleic Acids Res. 2014;42:W187-191.
Saha B, Home P, Ray S, Larson M, Paul A, Rajendran G, Behr B, Paul S. EED and KDM6B coordinate the first mammalian cell lineage commitment to ensure embryo implantation. Mol Cell Biol. 2013;33:2691–705.
Schuettengruber B, Bourbon HM, Di Croce L, Cavalli G. Genome regulation by polycomb and trithorax: 70 years and counting. Cell. 2017;171:34–57.
Shan Y, Liang Z, Xing Q, Zhang T, Wang B, Tian S, Huang W, Zhang Y, Yao J, Zhu Y, et al. PRC2 specifies ectoderm lineages and maintains pluripotency in primed but not naive ESCs. Nat Commun. 2017;8:672.
Shan Y, Zhang Y, Zhao Y, Wang T, Zhang J, Yao J, Ma N, Liang Z, Huang W, Huang K, et al. JMJD3 and UTX determine fidelity and lineage specification of human neural progenitor cells. Nat Commun. 2020;11:382.
Simon JA, Kingston RE. Mechanisms of polycomb gene silencing: knowns and unknowns. Nat Rev Mol Cell Biol. 2009;10:697–708.
Surface LE, Thornton SR, Boyer LA. Polycomb group proteins set the stage for early lineage commitment. Cell Stem Cell. 2010;7:288–98.
von Schimmelmann M, Feinberg PA, Sullivan JM, Ku SM, Badimon A, Duff MK, Wang Z, Lachmann A, Dewell S, Ma’ayan A, et al. Polycomb repressive complex 2 (PRC2) silences genes responsible for neurodegeneration. Nat Neurosci. 2016;19:1321–30.
Yao B, Christian KM, He C, Jin P, Ming GL, Song H. Epigenetic mechanisms in neurogenesis. Nat Rev Neurosci. 2016;17:537–49.
Zang C, Schones DE, Zeng C, Cui K, Zhao K, Peng W. A clustering approach for identification of enriched domains from histone modification ChIP-Seq data. Bioinformatics. 2009;25:1952–8.
Zhang T, Huang K, Zhu Y, Wang T, Shan Y, Long B, Li Y, Chen Q, Wang P, Zhao S, et al. Vitamin C-dependent lysine demethylase 6 (KDM6)-mediated demethylation promotes a chromatin state that supports the endothelial-to-hematopoietic transition. J Biol Chem. 2019;294:13657–70.
Zhou C, Yang X, Sun Y, Yu H, Zhang Y, Jin Y. Comprehensive profiling reveals mechanisms of SOX2-mediated cell fate specification in human ESCs and NPCs. Cell Res. 2016;26:171–89.
We thank the lab members in GIBH for their kindly help.
This work was granted by the National Key Research and Development Program of China, Stem Cell and Translational Research (2017YFA0102600); Strategic Priority Research Program of Chinese Academy of Sciences (Grant No. XDA16030504); the National Natural Science Foundation of China (31801220, 31971374); Science and Technology Planning Project of Guangdong Province, China (2017B030314056); the Frontier and Key Technology Innovation Special Grant from the Department of Science and Technology of Guangdong Province (2016B030230002, 2016B030229008); the Natural Science Foundation of Guangdong Province, China (2020A1515010139); Guangzhou Science and Technology Program General project (20180304001, 201904020045, 201904010462); Innovative Team Program of Guangzhou Regenerative Medicine and Health Guangdong Laboratory (2018GZR110104005), the Informationization Special Project of Chinese Academy of Sciences “E-Science Application for Knowledge Discovery in Stem Cells (XXH13506-203), the Open Research Funds of the State Key Laboratory of Ophthalmology (2019KF06); the Guangdong Province Special Program for Outstanding Talents (to G.P., 2019JC05Y463).
Ethics approval and consent to participate
The H1 hES cell line used in the study was reviewed and approved by the Human Subject Research Ethics Committee at GIBH.
Consent for publication
Guangjin Pan is a member of the Editorial Board for Cell Regeneration. Guangjin Pan was not involved in the journal's review of, or decisions related to, this manuscript.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
SOX2 knock-down reduces efficiency of neural differentiation. a Immuno-staining analysis for expression profiles of EZH2 and SOX2 during neural differentiation of hESCs at day 0 and day 8. b Schematic of the default neural differentiation strategy for hESCs after viral infection. hESCs were infected with SOX2-shRNAs. We used puromycin to select the cells with SOX2-shRNAs at day -1. c. Western blot of PAX6 and SOX2 proteins in the indicated cells at day 0 or day 16 of neural differentiation. d. FACS analysis of PAX6+ cells at day16 of neural differentiation in the indicated cells. The data represent the mean ± SD from three independent replicates (n=3). The significance level was determined using unpaired two-tailed Student’s t-tests. **, P< 0.01. e. Immunostaining for the pluripotent marker OCT4, the NPC markers SOX2/NESTIN in neural differentiation of WT and SOX2-shRNA cells. Scale bar, 50 μm. f. qRT-PCR analysis of the expression of the pluripotent genes OCT4/NANOG and SOX2 at day 0, day 8 and day 16 of neural differentiation. The data represent the mean ± SD (standard deviation) from three independent replicates (n=3). The significance level was determined using unpaired two-tailed Student’s t-tests. *, P< 0.05. **, P< 0.01. g. qRT-PCR analysis of the expression of the NPC genes PAX6/SOX1/OTX2/FOXG1 and meso-endoderm genes ZIC1/PAX3/KRT18/VEGFA at day 16 of neural differentiation. The data represent the mean ± SD (standard deviation) from three independent replicates (n=3). The significance level was determined using unpaired two-tailed Student’s t-tests. **, P< 0.01
Primer sequences for this manuscript. Supplementary Table 2 Antibody information for this manuscript.
About this article
Cite this article
Zhao, Y., Wang, T., Zhang, Y. et al. Coordination of EZH2 and SOX2 specifies human neural fate decision. Cell Regen 10, 30 (2021). https://doi.org/10.1186/s13619-021-00092-6
